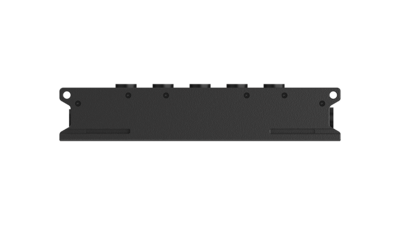

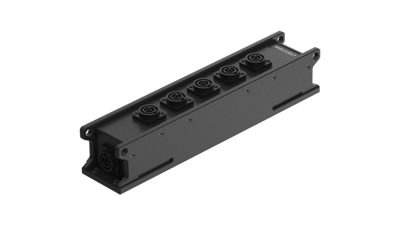

1x powerCON TRUE1 IN – 6x powerCON® TRUE1® TOP OUT - Indoor (IP20)
US version: Power Strip X CPSSX-T1-T6 USA
Power Strip Xtreme (X) is a compact distribution solution for mobile applications. This distribution box is ideally suited for Indoor applications with restricted space / height and harsh usage conditions, for example in theaters, exhibition or similar applications. It also offers a very attractive price point.
| Article name | Details | Order code |
| CPSX-T1-T6 | IN: 1 x powerCON® TRUE1® TOP Indoor (IP20) | 1035598 |
| Product | |
| Input device | 1x powerCON® TRUE1® TOP |
| Output device | 6x powerCON® TRUE1® TOP |
| Daisy chaining | 1x powerCON® TRUE1® TOP |
| Electrical | |
| Contact resistance / protection class | Protection class II |
| Dielectric strength | 0.5 kV / mm |
| Rated voltage | 250V AC |
| Rated Current | 16A (USA: 20A) |
| Number of electrical contacts | 2 + PE |
| Phases | single-phase |
| Mechanical | |
| Lifetime | > 5000 Mating cycles per connector |
| Dimensions | 380 x 91.2 x 77 mm |
| Conductor cross section | 2.08 mm² |
| Weight | 1.0 kg |
| Mounting options | Truss clip, mounting wholes for pegging or suspension |
| Type of construction | Stackable |
| Material | |
| Housing | Easylen |
| Color | black |
| Environmental | |
| Standards compatibility | UL94-V2 |
| Protection class | IP20 |
| Temperature range | -25 °C bis +70°C |
